Techniczne Informacje
| *** Dane ukryte w dniu 2023-06-28 (optymalizacja) |
Informacje o stanie na magazynie. (jeżeli dostępne)
M105R3031SE | PRESTOLITE | ROZRUSZNIK [24V][7.5kW] 113851
-
ROZRUSZNIKI Kategoria
-
PRESTOLITE LEECE NEVILLE Producent
-
M105R3031SE Identyfikator
-
113851 Identyfikator
Specyfikacja produktu
| Numer towaru | M105R3031SE |
| Numer sprzeda??y | M105431 |
| Numer serii | M105 |
| Notatka | Fixed Flange, Earth Return Oil-sealed |
| Napi�?cie (V) | 24 |
| Moc (kW) | 7.5 |
| Typ mocowania | SAE3 |
| Wymiary w | Milimetry |
| Obroty | Zgodnie z wskaz??wkami zegara |
| Housing coating | RAW |
| UL Approved | No |
| Ilo??�? z�?b??w | 12 |
| Pinion pitch | MOD 3 |
| ?�rednica bendiksu (O.D.) | 44 |
| Pozycja bendiksu w stanie spoczynky (B) | 48.5 |
| Wymiar pomi�?dzy 2 z�?bami | 14.36-14.46 |
| Typ flanszy | SAE J542 Type 3 |
| Rysunek flanszy |  |
| Pozycja flanszy | 275° |
| Pozycja prze??�?cznika | -40° |
| Wyj??cie sterowania | M6 |
| Wyj??cie B+ (plus) | M12 |
| Wyj??cie B- (masa) | N/A |
| Mokre sprz�?g??o | Tak |
| Ochrona przed przeci�???eniem | No |
Biuletyny techniczne

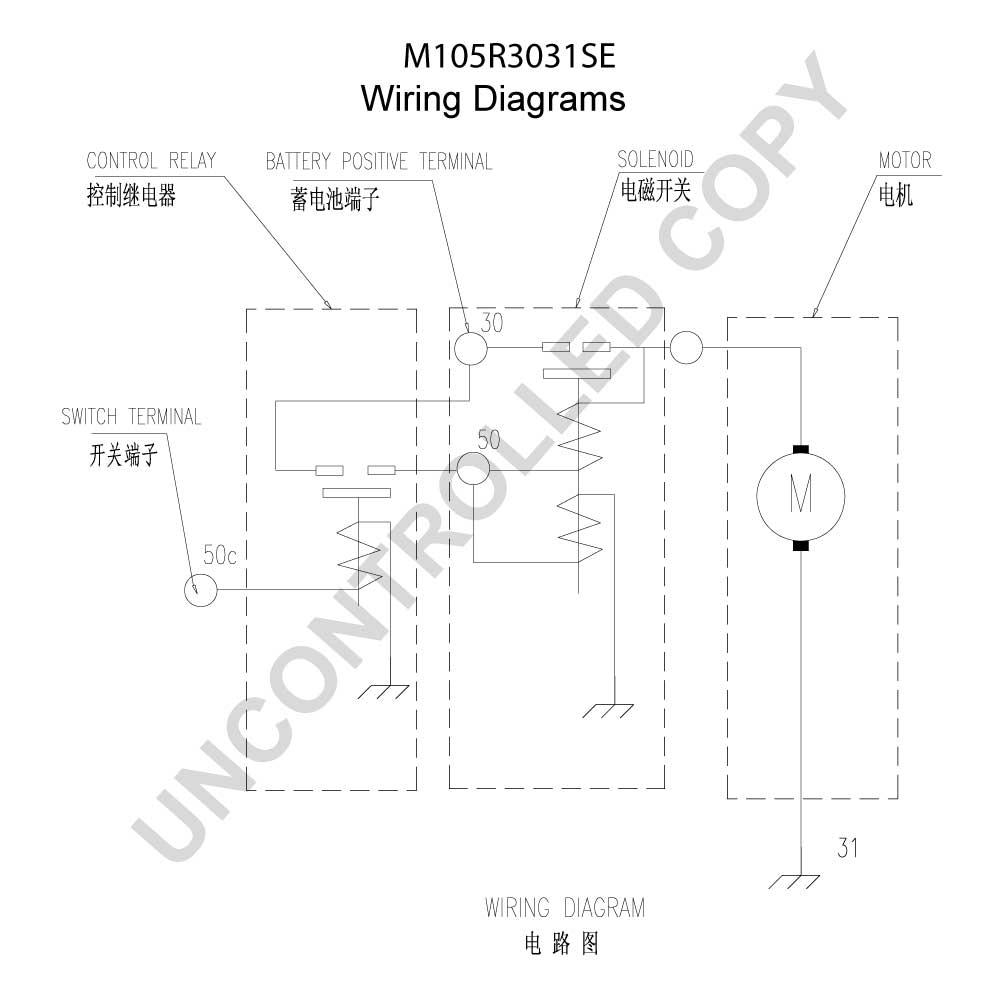

| Titan 105 24V Wiring Diagram | Wiring diagram for 24 Volt M105 Titan starter motors. TSB-1114 24V M105R Wiring.pdf (427 kb) |
| TSB-1158_M105R_M110R_Rotate_Flange_Relay.pdf | Rotate flange and relay procedure TSB-1158_M105R_M110R_Rotate_Flange_Relay.pdf (306 kb) |
Podział części
| Titan 105 Service Parts List | Service Parts list for Titan 105 starter motors SP1019-M105R-service-parts-list.pdf (916 kb) |
Literatura
| M105_Starter_24V_FL1210.pdf | M105 24V, 7.5kW Starter Motor Brochure M105_Starter_24V_FL1210.pdf (807 kb) |
| Titan 105 Starter Sell Book | The Sell Book provides detailed information about the 12 volt and 24 volt models of the M105 starter motors. Sell Books are geared toward sales representatives, providing details on advantages of the M105 starter over competitive products. PP1257_Titan105_Series_Sell_Book.pdf (4.2 mb) |
| Truck Application Alternators and Starters | Alternators and starter motors for truck applications- UK PP4039_Truck App Ref Guide-web.pdf (4.7 mb) |
